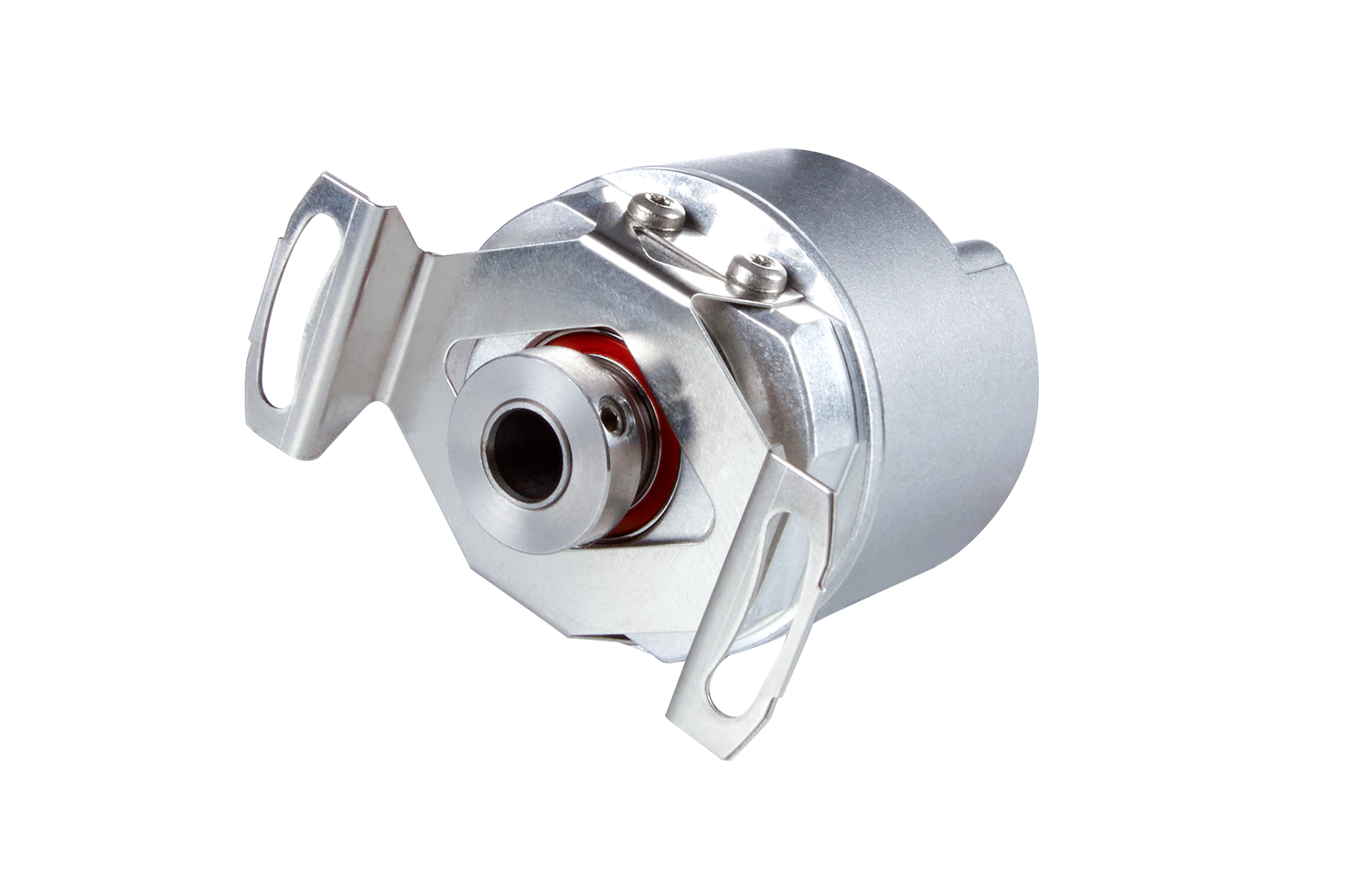

ECN 1000 and EQN 1000 series

Absolute rotary encoders with integral bearing

  • High axial tolerance of up to ±0.5 mm
  • Blind hollow shaft in Ø 6 mm
  • Positioning accuracy of down to ±60"
  • 8 388 608 positions/rev.
  • Multiturn functionality for up to 4096 revolutions
  • Max. operating temperature: 100 °C
  • Interfaces: EnDat
  • Housing diameter ≈ 35 mm
Ask about product

Direct shaft coupling

The encoder's hollow shaft allows it to be coupled to the mating shaft. No additional rotor coupling is required. The high rigidity permits higher control-loop bandwidths while significantly reducing inaccuracy and installation complexity.

Precise positioning

Rotary encoders with a bearing and stator coupling ensure consistently high accuracy. Thanks to optimally matched components, system accuracies of down to ±60 arc seconds are attained.

Flexible coupling

The stator coupling compensates for play between the motor and the rotary encoder, thereby correcting inaccuracy. Even tilt and axial play of up to ±0.5 mm can be reliably compensated for. The stator coupling also facilitates easy mounting to the plane surface.

Compact design

The rotary encoders of this series feature high ruggedness and reliability in a very compact design with an outer diameter of just 35 mm. Their small footprint makes them ideal for very tight installation spaces.
