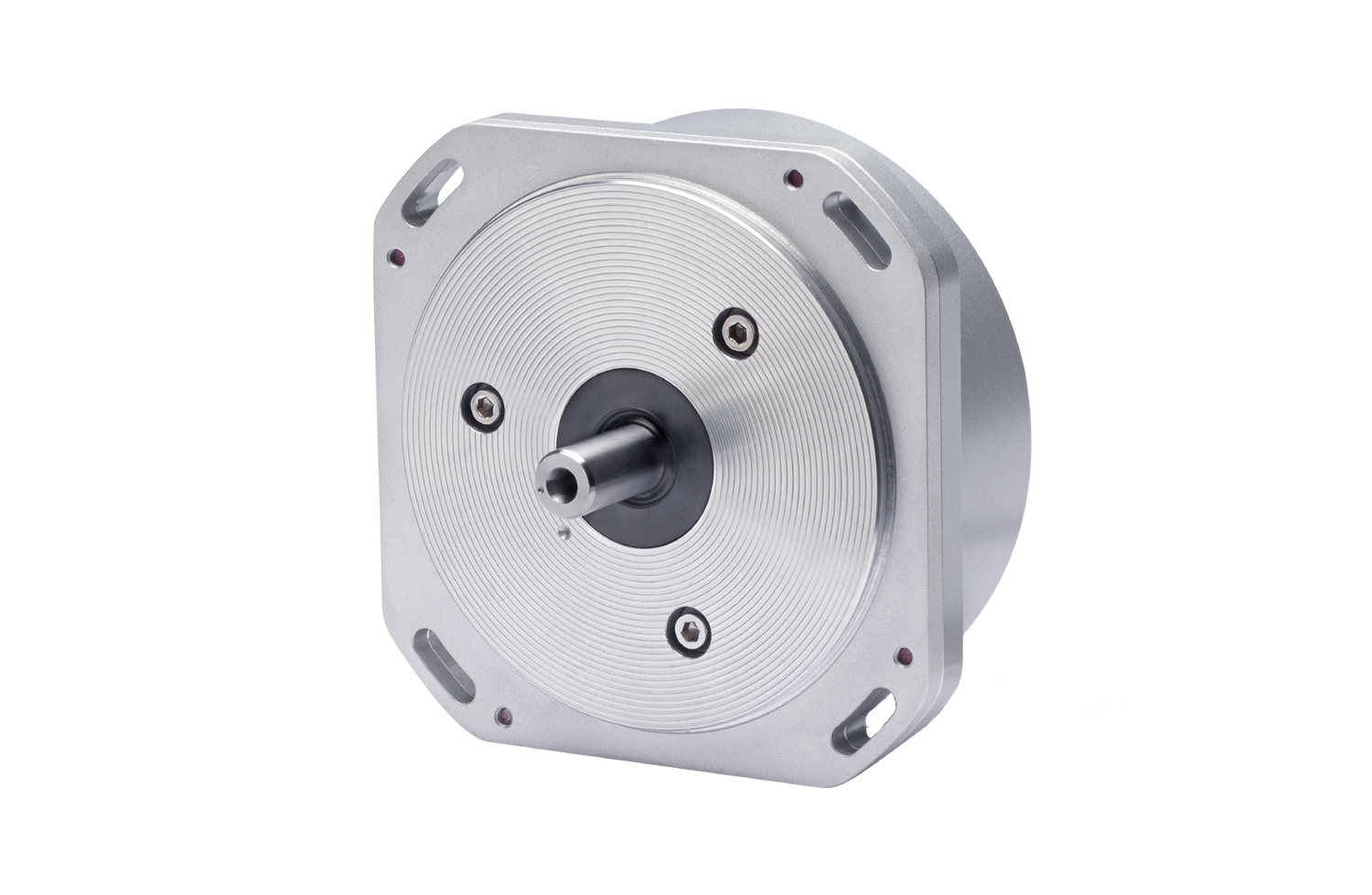

ROD 200 series incremental angle encoders HEIDENHAIN

Incremental angle encoders with a compact design

System accuracy of ±5”
For separate shaft coupling
Solid shaft with ∅ 10 mm
Signal periods per revolution: up to 180 000 with integrated interpolation
Interfaces: TTL, 1 V_PP

Flexible coupling

The solid shaft of the ROD 200 series angle encoders is connected to the measured shaft via a separate coupling.

High accuracy

Based on their high line count of 18,000 lines, these angle encoders can transmit either sinusoidal output signals or square-wave signals additionally interpolated within the encoder.
