SRP series

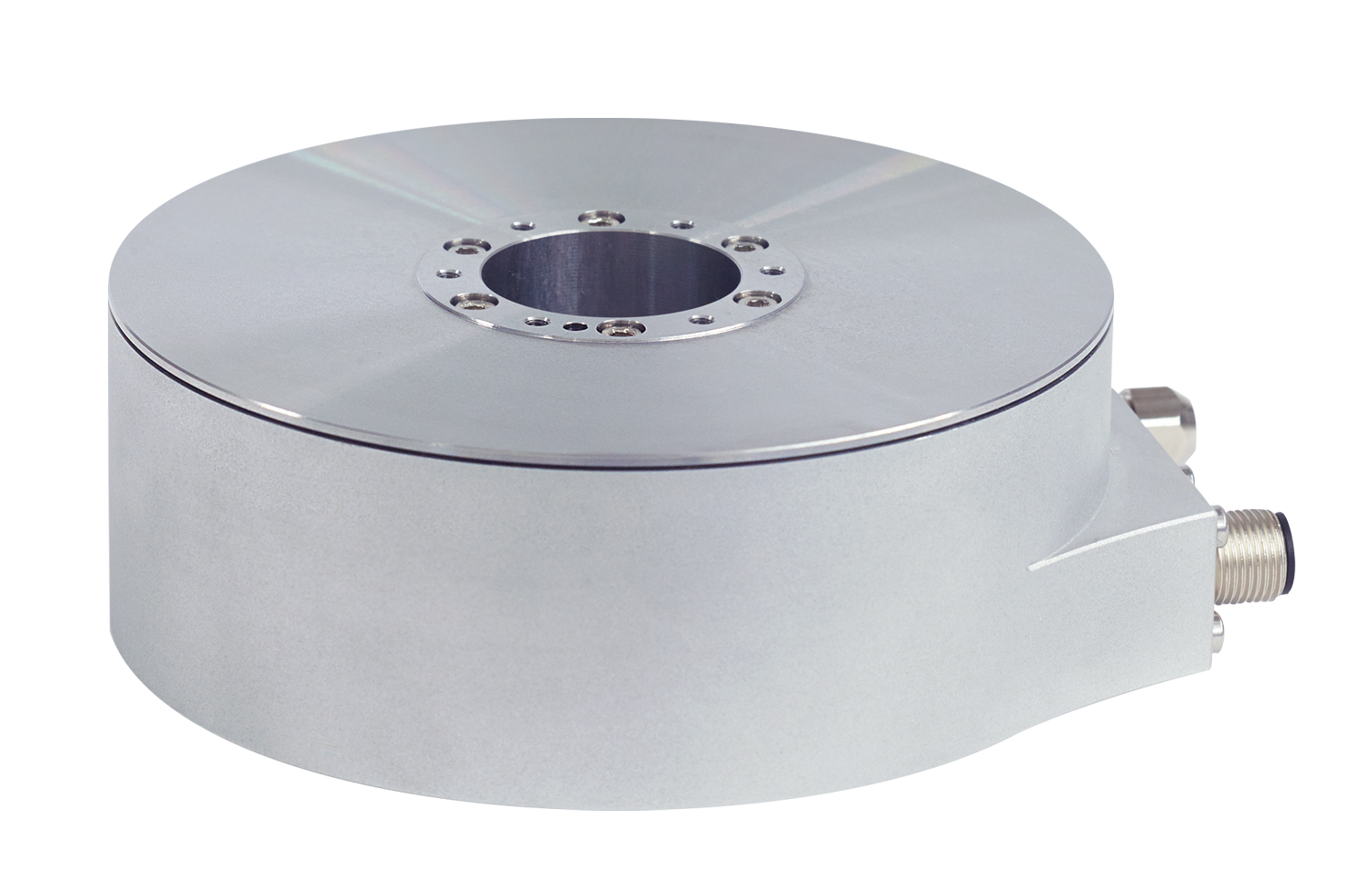

Extremely small measuring steps with utmost accuracy: the SRP 5080 angle encoder modules use interferential scanning, with a phase grating as their measuring standard.

This model's torque motor, positioned parallel to the encoder and bearing, makes for an extremely compact design, lending high rigidity to the complete system and yielding very high positioning accuracy.

These angle encoder modules consist of a preloaded bearing unit with a mounted angle encoder. Precise alignment and adjustment of the angle encoder modules is not required. Centering collars on the mating components further facilitate installation.

Thanks to its zero-cogging characteristics, the slotless torque motor of the SRP modules does not disturb the high-precision bearing. This allows for exceptionally uniform motion control and positioning accuracy.
